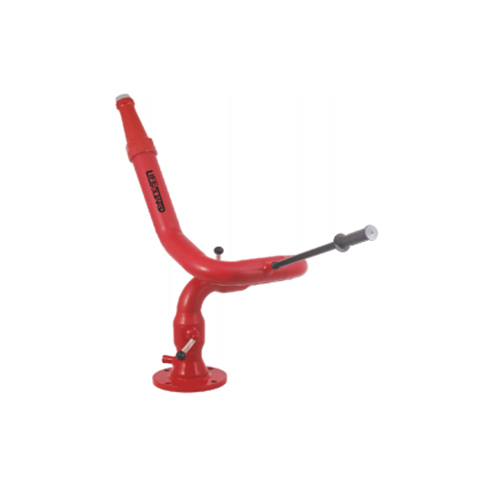

1750 Lpm 75mm Lifeguard Water Foam Monitor

Send Inquiry

Request To Call Back

1750 Lpm 75mm Lifeguard Water Foam Monitor

Get a Price/Quote

MOQ : 1 Piece

1750 Lpm 75mm Lifeguard Water Foam Monitor Specification

Operating Pressure
7 kg/cm

Features
360 horizontal rotation, 90 vertical movement, Corrosion-resistant, Rigid construction, Easy operation, Maintenance-free bearings

Installation Type
Fixed or Portable (Mounting Flange/Base Plate)

Fire Class
A, B, C

Shape
Cylindrical/Streamlined

Control Type
Manual (Handwheel/Gear Operated)

Coating Type
Epoxy Powder Coated/Red Painted

Technology
Manual/Jet & Spray selectable

Working Temperature
-10C to +60C

Mounting Type
Flanged/Base Mounted

Fire Extinguisher Type
Water cum Foam Monitor

Connectivity Type
Flanged (ANSI/DIN standard) or threaded inlet connection

Coverage Area
Up to 45 meters (throw distance in jet mode)

Application
Industrial Fire Protection, Refineries, Petrochemical Plants, Oil Depots, Storage Tanks, Marine and Offshore Platforms, Airports, Warehouses

Max Flow Rate
1750 LPM (Litres per Minute)

Capacity
1750 LPM

Diameter
75 mm (3 inches)

Pressure
7 kg/cm (100 psi)

Colour
Signal Red (RAL 3000)

Gasket Material
EPDM/Viton Rubber

Inlet Connection Size
75 mm NB (Nominal Bore)

Test Pressure
Up to 21 kg/cm2

Surface Finish
Red Epoxy Powder Coating for high corrosion resistance

Maintenance
Low maintenance, Grease nipple for periodic lubrication

Swivel Range
360 degrees (horizontal), +80 to -45 (vertical)

Weight
Approx. 32-40 kg depending on configuration

Material of Construction
Carbon Steel/Stainless Steel with corrosion-resistant finish

Waterway
Full Bore for reduced friction loss

Handle Material
Stainless Steel/Aluminium

Nozzle Type
Variable Flow (Jet/Spray) nozzle

Accessories
Branch Pipe/Foam Barrel/Foam Inductor (as optional)

1750 Lpm 75mm Lifeguard Water Foam Monitor Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About 1750 Lpm 75mm Lifeguard Water Foam Monitor

This is your Last Chance to Access the monumental performance of the 1750 LPM 75mm Lifeguard Water Foam Monitor. Engineered for illustrious reliability, this majestic fire-fighting solution boasts a rugged carbon steel or stainless steel build with a corrosion-resistant red epoxy finish. Experience full 360 horizontal rotation and an 80 to -45 vertical swivel. With a variable flow jet/spray nozzle, this monitor ensures high coverage, reduced friction loss, and maintenance-free operation-ideal for demanding environments like refineries, marine platforms, and industrial plants. Options include foam accessories for expanded utility. Act now for industry-leading protection!

Majestic Coverage and Robust Utility for Industrial Settings

The 1750 LPM 75mm Lifeguard Water Foam Monitor delivers monumental fire suppression. Its primary advantage lies in its full 360-degree rotation and streamlined, full-bore design for minimal friction loss and maximal water/foam delivery. Specifically crafted for industrial fire protection, it is perfectly suited for refineries, petrochemical plants, oil depots, and marine platforms. Its corrosion-resistant structure and variable nozzle ensure powerful, flexible performance for both specific and general fire safety applications.

Premium Export Availability & Supply Terms

We supply this illustrious 1750 LPM Water Foam Monitor in both domestic and international markets-serving premium requirements in Asia, Africa, the Middle East, and beyond. Payment terms are flexible, including LC, TT, and other options to suit global clients. FOB port services are provided from major Indian ports, streamlining logistics with prompt response and quality assurance for all orders, be it single-unit or bulk requirements.

FAQ's of 1750 Lpm 75mm Lifeguard Water Foam Monitor:

Q: How is the 1750 LPM 75mm Lifeguard Water Foam Monitor installed?

A: The monitor can be installed using either a flanged or threaded inlet connection, and can be mounted as fixed or portable on a base plate or flange, making it adaptable to various industrial sites.

Q: What are the key benefits of using this water foam monitor in industrial applications?

A: Major benefits include full 360 horizontal rotation, a robust and corrosion-resistant build, maintenance-free bearings, powerful jet/spray modes, and optional foam accessories for versatile fire suppression.

Q: When should industries or facilities consider upgrading to this monitor?

A: Facilities should opt for this monitor when requiring monumental fire protection in high-risk environments such as refineries, oil depots, or marine platforms that demand expansive coverage and reliable performance.

Q: Where is this monitor most effectively used?

A: It is especially effective in industrial complexes, petrochemical plants, oil storage depots, airports, marine vessels, and warehouses, ensuring powerful protection in hazardous settings.

Q: What is the process for maintaining this water foam monitor?

A: Maintenance is minimal-users only need to perform periodic lubrication with the grease nipple, as the rigged construction, corrosion-resistant finish, and high-quality bearings reduce intervention requirements.

Q: How does the selectable nozzle type enhance its usage?

A: The variable flow jet/spray nozzle allows users to select the spray pattern according to situation demands, ensuring optimal firefighting performance and efficient water or foam usage.
