Aqueous Film Forming Foam

Embrace the reliability of our Aqueous Film Forming Foam, a magnificent solution designed specifically for firefighting applications. With over 19.0 years of unparalleled experience in the industry, we offer an exclusive range of mechanical foam fire extinguishers, including the 45ltr Mechanical Foam Outer Co2 Trolley Fire Extinguisher, 20ltr Mechanical Foam Gas Cartridge Trolley Fire Extinguisher, 45Ltr Mechanical Foam Gas Cartridge Trolley Fire Extinguisher, and the compact yet superlative 6 Ltr Mechanical Foam Fire Extinguisher. Engineered to deliver incomparable performance, this foam ensures superior rapid fire suppression by forming an aqueous film that effectively cuts off oxygen supply. It boasts exceptional resistance against re-ignition, magnificent flow control for precise application, and is formulated for optimal coverage across diverse environments. Additionally, its eco-friendly composition makes it a new-age, safe solution for both personnel and property protection. We are proud to supply this product across the domestic market of All India, ensuring accessibility and reliability. Elevate your fire safety standards with our incomparable Aqueous Film Forming Foam, a trusted choice that combines accuracy, durability, and advanced firefighting efficiency.

20ltr Mechanical Foam Gas Cartridge Trolley Fire Extinguisher

MOQ : 1 Piece

  • Application
  • Industrial and commercial fire protection
  • Capacity
  • 20 litres
  • Coating Type
  • Powder coated / corrosion-resistant paint
  • Connectivity Type
  • Standalone - no wired connection
  • Control Type
  • Hand controlled lever / squeeze grip
  • Coverage Area
  • Approx. 3 meter range
  • Diameter
  • 295 mm (approx)
  • Features
  • Trolley mounted, corrosion-resistant, easy mobility, quick operation
  • Fire Class
  • Class A and B
  • Fire Extinguisher Type
  • Gas Cartridge Type Mechanical Foam
  • Installation Type
  • Portable (Trolley-mount)
  • Max Flow Rate
  • Suitable for Class A and B type fires
  • Mounting Type
  • Trolley-mounted
  • Operating Pressure
  • 7 - 15 kgf/cm²
  • Pressure
  • Test Pressure 25 kg/cm²
  • Shape
  • Cylinder
  • Technology
  • Mechanical Foam (AFFF) Extinguishing
  • Voltage
  • Not required (manual operation)
  • Working Temperature
  • 5°C to 55°C

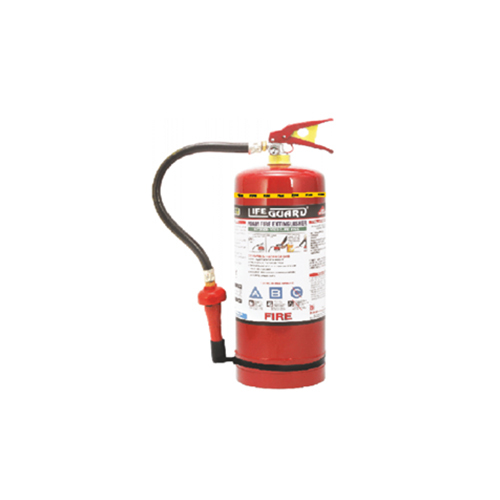

6 Ltr Mechanical Foam Fire Extinguisher

MOQ : 1 Piece

  • Application
  • Industrial, Commercial, Offices, Hotels, Warehouses, and General Purpose
  • Capacity
  • 6 Litres
  • Coating Type
  • Powder Coated
  • Connectivity Type
  • Manual Operation
  • Control Type
  • Squeeze Grip
  • Coverage Area
  • 2.5 m2 to 3.25 m2
  • Diameter
  • Approx. 155 mm
  • Features
  • Corrosion-resistant container, User-friendly operation, Quick refilling facility, ISI Marked, Safe for use on live electrical equipment up to 1,000V (from 1 m distance)
  • Fire Class
  • Class A & B
  • Fire Extinguisher Type
  • Mechanical Foam (AFFF)
  • Installation Type
  • Wall Mounted
  • Mounting Type
  • Wall Mounted
  • Operating Pressure
  • 15 bar
  • Pressure
  • 15 bar (outside pressure vessel)
  • Shape
  • Cylinder
  • Technology
  • Mechanical Foam (AFFF)
  • Working Temperature
  • -5°C to +55°C

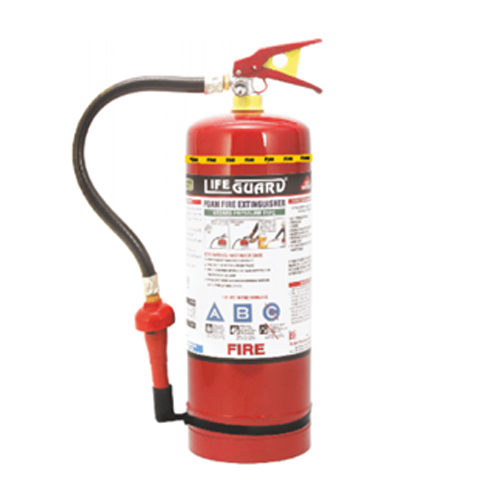

9 Ltr Mechanical Foam Fire Extinguisher

MOQ : 1 Piece

  • Application
  • Suitable for flammable liquids such as petrol, oil, paints, solvents and fats; ideal for use in factories, warehouses, workshops, and garages
  • Capacity
  • 9 Litres
  • Coating Type
  • Epoxy powder coated
  • Connectivity Type
  • Manual operation – No connectivity
  • Control Type
  • Squeeze Grip
  • Coverage Area
  • 3.5 to 4 metre range
  • Diameter
  • 180 mm (approx)
  • Features
  • ISI marked, Corrosion resistant body, High performance, Easy to use, Durable
  • Fire Class
  • Class A & B
  • Fire Extinguisher Type
  • Mechanical Foam (AFFF) type
  • Installation Type
  • Wall mounted with bracket
  • Max Flow Rate
  • Not Applicable (discharge rate approx. 1 ltr/sec)
  • Mounting Type
  • Wall mounted
  • Operating Pressure
  • 15 bar (Service)
  • Pressure
  • 15 bar (Service Pressure)
  • Shape
  • Cylindrical
  • Technology
  • Stored Pressure Type
  • Working Temperature
  • +5°C to +55°C

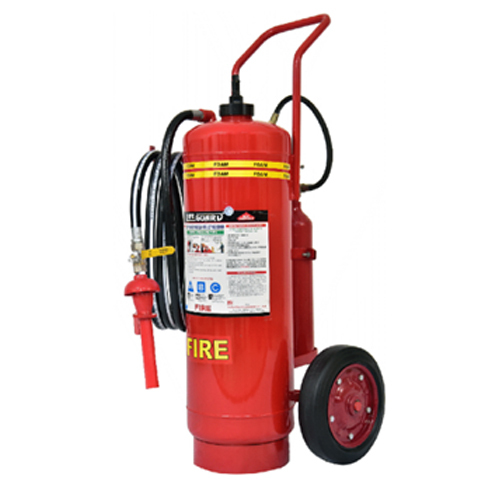

45ltr Mechanical Foam Outer Co2 Trolley Fire Extinguisher

MOQ : 1 Piece

  • Application
  • Industrial, Warehouses, Oil Installations, Chemical Plants, Storage Areas
  • Capacity
  • 45 Litre
  • Coating Type
  • Corrosion Resistant Epoxy Powder Coated
  • Control Type
  • Manual Lever Operation
  • Coverage Area
  • Up to 5 square meters per discharge
  • Diameter
  • 395 mm
  • Features
  • Quick Knockdown of Flammable Liquid Fires, Non-Toxic, Easy Refill
  • Fire Class
  • A and B
  • Fire Extinguisher Type
  • Trolley Mechanical Foam (AFFF) with Outer CO2
  • Installation Type
  • Trolley Mounted
  • Max Flow Rate
  • 1.0 L/sec
  • Mounting Type
  • Trolley Mounted
  • Operating Pressure
  • 10-12 bar
  • Pressure
  • 15 bar (Tested up to 30 bar)
  • Shape
  • Cylindrical
  • Technology
  • Mechanical Foam with Outer CO2 Cartridge
  • Working Temperature
  • +5°C to +55°C

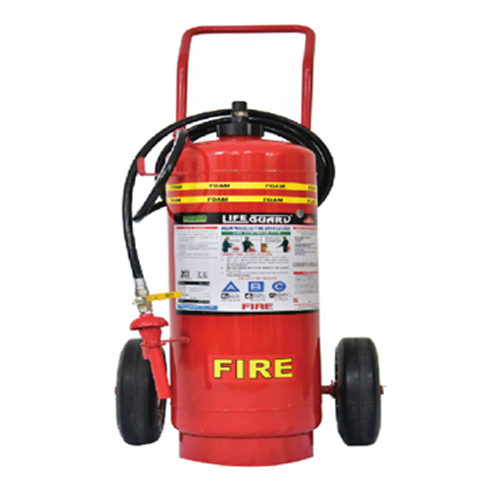

45Ltr Mechanical Foam Gas Cartridge Trolley Fire Extinguisher

MOQ : 1 Piece

  • Application
  • Ideal for flammable liquid fires in industrial plants, warehouses, and fuel storage areas
  • Capacity
  • 45 Litres
  • Coating Type
  • Epoxy powder coated
  • Control Type
  • Manual lever-operated discharge valve
  • Coverage Area
  • Suitable for large coverage in open environments
  • Diameter
  • Approximately 320 mm
  • Features
  • Trolley-mounted, quick activation, refillable, corrosion resistant
  • Fire Class
  • Class A and B
  • Fire Extinguisher Type
  • Mechanical Foam (AFFF) Gas Cartridge Type
  • Installation Type
  • Portable, mobile through trolley
  • Mounting Type
  • Trolley (mobile)
  • Operating Pressure
  • 12 bar nominal
  • Pressure
  • 12 kgf/cm² (at 27°C)
  • Shape
  • Cylindrical with trolley
  • Technology
  • Mechanical Foam (AFFF) using gas cartridge pressure
  • Working Temperature
  • -5°C to +55°C

45ltr Mechanical Foam Outer Co2 Trolley Fire Extinguisher

MOQ : 1 Piece

  • Application
  • Suitable for industrial, commercial, warehouse areas and locations with high fire risk involving flammable liquids and solids.
  • Capacity
  • 45 Litres
  • Coating Type
  • Corrosion Resistant Epoxy Powder Coated
  • Control Type
  • Manual Control Valve
  • Coverage Area
  • Up to 3 meters spray range
  • Diameter
  • 340 mm
  • Features
  • Easy mobility with trolley, quick knockdown, effective cooling and blanketing action
  • Fire Class
  • Class A & B
  • Fire Extinguisher Type
  • Mechanical Foam (AFFF) - Outer CO2 Cartridge
  • Installation Type
  • Portable on Trolley
  • Max Flow Rate
  • 5-8 Litre/Sec
  • Mounting Type
  • Trolley Mounted
  • Operating Pressure
  • 12 bar
  • Pressure
  • 12 bar (Service Pressure)
  • Shape
  • Cylindrical
  • Technology
  • Stored Pressure with Outer CO2 Cartridge System
  • Working Temperature
  • -5°C to +55°C
